Description & Specs.
Type: 35mm single-lens reflex camera.
Picture sized: 24x36mm.
Lens Mount: FD mount (Interchangeable)
Viewfinder : Fixed eye-level pentaprism. 0.9x magnification (FL 50mm), 92% vertical coverage, 94% horizontal coverage. Microprism rangefinder at center of fresnel matte screen. Metering indicator and exposure match needle provided. A diagonally-cut condenser lens block is semi-silvered on the diagonal surface. This beam splitter enables the incoming light to be split for the viewfinder image and metering cell. Waist Level Viewer 2 can be attached.
Focusing Glass: Highly efficient in resolving power, using Fresnel lens and built-in prism screen rangefinder.
Mirror : Shockless quick return type. Mirror can be locked upward.
Aperture : Fully automatic preset aperture built in. Preset release possible.
Shutter : Two-axis, horizontal-travel focal-plane shutter with cloth curtains. X, B, 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/125, 1/250, 1/500, 1/1000 sec. Built-in self-timer (self-timer lever also functions as a stop-down lever).
Built-in Exposure Meter : Zero method CDs meter coupled to the shutter dial and aperture setting. The CdS cell for TTL stopped-down match needle partial metering at center (12% of center). Metering range at ISO 100: EV 3 - 18. Film speed range from ISO 25 to 2000. 1.3 V MD mercury cell power source. Battery check feature provided.

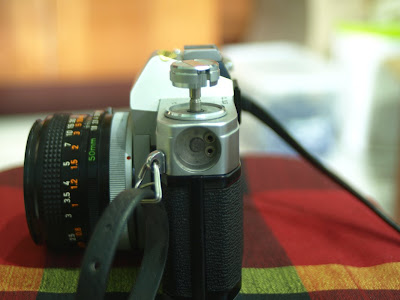

All features and specs has been tested and there are working properly. Although there are traces of usage, but concurrent with its age, we can say that this camera is still good condition and fires it shutter accordingly, inner and outer part is clean (see photos). Timer working efficiently. However, the light meter is not functioning due to absentee of battery chamber cover. Hey, this is a fully mechanical camera, therefore as far as I'm concerned, it is not a big deal.

Apart from that, this camera is bundled with Canon FD 50mm lens with maximum aperture of f/1.8. Lens is clean but no lens cap is provided. No oil stain at the blades, focusing ring turns accordingly, aperture open and close smoothly at all f-value. In addition , we'll also provide a hard copy of its manual for your reference plus a leather strap. Besides that, the light seals are still intact, so you don't have to worry. Just load film in it and shoot!.

More informations about this camera can be read and studied here


Sample Images
What is the capabilities of Canon FD glass?
